Tutorial Convertible/Infinity Dress Tutorial (Easy for Beginners!)

Jun 10, 2011

    1. I actually found this tutorial while searching for this infinity dress and realized just how easy it was to make this even when I am just doing handsewing. I already made a couple of them for my Minifee. The tutorial is about the same with the tutorial linked up there, but I would be putting my own version here just easier with the pictures I took and for more BJD wise kind of thing.

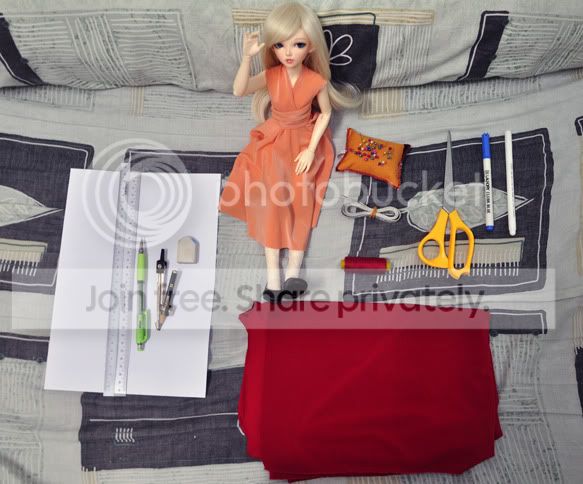

      So let us begin! Let us start with the materials first.

      [​IMG]

      What you need is:
      Office Paper/Tracing Paper (Big enough to draw out the pattern. I used one A4 size paper for my Minifee, but if bigger, then you might need more. Just paste together the papers and yeah.)
      Pencil
      Eraser
      Compass (If you don't have one, that's alright!)
      Pins
      Sewing Needle
      Measuring Tape
      Fabric Scissors
      Fabric Pen/Chalk (I used fabric pen for most of the works I do. Very convenient if you ask me.)
      Polyester Knit (Stretchy, drapey fabric. Love this fabric so much!)
      Matching Thread

      And of course. Not forgetting, your model. I would be using my Minifee Chloe who is small bust A-line with cutie legs. Anybody with that body can just use the measurements I took. :>

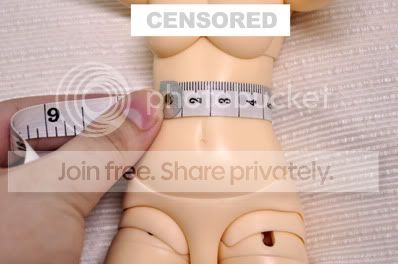

      So we should start by taking measurements first! We start by measuring from the middle of the breasts over the fullest part (which means over the nipple) and towards the middle of the underarm. This measurement would be the width of the straps for your dress. I measured 4.5 cm for my Minifee small bust, so that would be the width.

      [​IMG]


      Now for the strap length, you just need to make the straps 1.5 times higher than the doll's height. So for my Minifee, she's 41 cm so the strap length would be 61.5 cm.

      Now let us go to the skirt. Let's measure the waist. And I got 12 cm for the waist.

      [​IMG]


      Now for the length of the skirt. I usually go for below the knees like so. And I used 16 cm.

      [​IMG]


      So that would be it for the measurements! Now off to the pattern! You just need to make a pattern for your circle skirt. To make the pattern, we would need to do some maths calculation because we would want to get the radius of circle of the waist measurement that you took. If you really want to know how I got the radius, here goes.

      Circumference = 2 x pi x radius
      Circumference = Waist Measurement
      Radius = Circumference / (2 x pi)

      Hopefully that's understandable. But the inner radius for the circle skirt I measures would be 1.9 cm. So using the compass, I measured 1.9 cm and then drawing out starting from one end of the paper like so.

      [​IMG]


      Then from there, at the end of the circle radius, I measured out the skirt length I wanted which is 16 cm.

      [​IMG]


      So you should get something like this.

      [​IMG]


      Do the same for the other side. The compass would not be able to do 16 cm sadly, so people would just use the oldest trick in the book. Using string and a pencil.

      [​IMG]

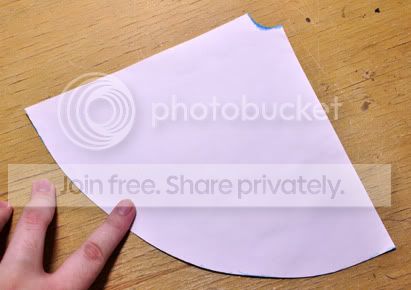

      After you draw that outer circle out, then cut it out. You should have a skirt pattern like so.

      [​IMG]

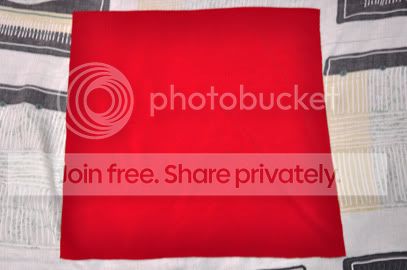

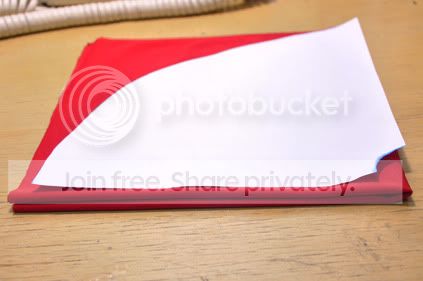

      Now you got your pattern, now it is time to cut the fabric! What I usually would do is I cut a a piece of the huge fabric I bought. It would be easier for me to cut the circle skirt out that way too. What I do is that I cut out a square which could fit the whole circle of the skirt inside.

      What I do is that I took the length of the skirt and know that when it would come out, it would be double the length. So it would be 32 cm. I give some allowance, and just measure out 39 x 39 cm square from the large piece of fabric.

      [​IMG]


      Then that fold square two times, making sure the fabric doubled on itself place the pattern onto the fabric like so that the edges would match up together.

      [​IMG]

      [​IMG]


      Continued in the next post~

      • x 2

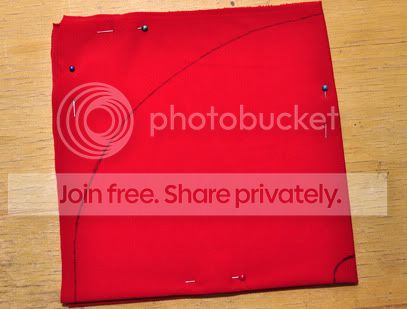

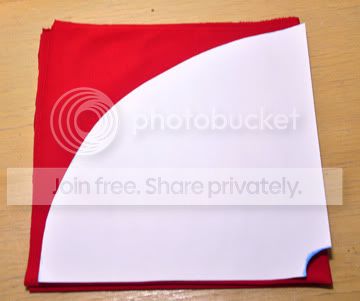

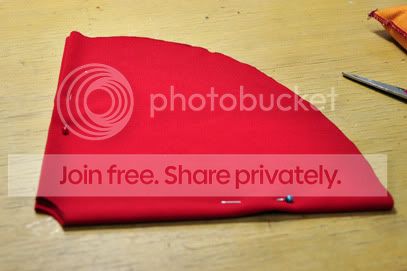

    2. Then using either fabric pen or chalk, just trace over. What I do is using pins to make sure the fabric doesn't move when I traced and even when I cut the shape out.

      [​IMG]

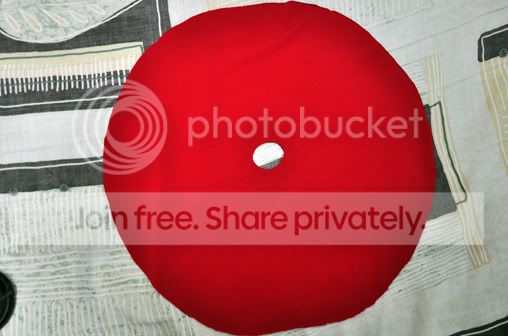

      And then cut it out, and you would result in this.

      [​IMG]

      [​IMG]

      One circle skirt! YAY! Sometimes the skirt cutting would not be so clean and you could always trim the ends of the skirt to make it look more even. But it's not so needed!

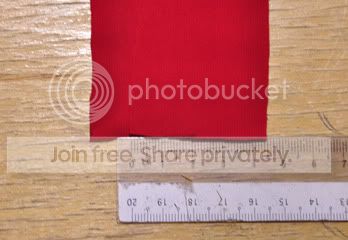

      Now for the straps!

      What I do is actually the easier (and way lazy) method, but what I would do is that I measure out 61.5 cm in length and measuring double the width of the strap, so that would be 9 cm. I cut the piece out, fold it together to get a half and just cut through so you would get two almost equal straps.

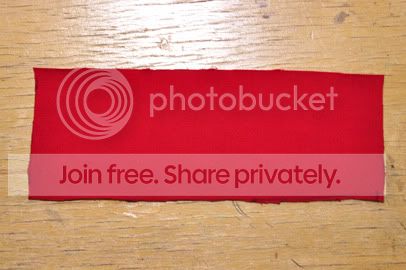

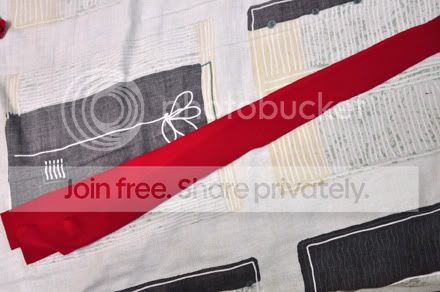

      And you would end up with this!

      [​IMG]


      Now the straps need to be overlapped and I would put 3 cm, so just overlap the straps at either ends and just pin them together.

      [​IMG]

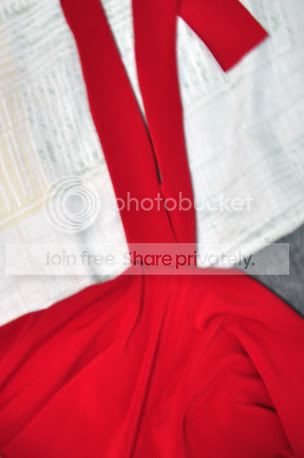

      And now it's time to put the straps onto your nicely cut circle skirt! Choose a middle point of your skirt and pin the straps down, from one edge to the other. If you are using some knit that has patterns on the right side and such, I would recommend that you put the straps right side down and the skirt right side up together! But if your fabric is like mine in the picture, it does not matter!

      [​IMG]

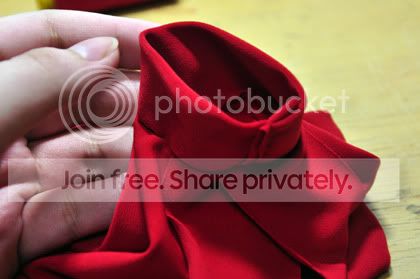

      And now it's time to sew, using the matching thread! I use backstitch for the dresses I sew, but you can use the overlapping stitch or buttonstick really. I'm a handsewer (until I get my own sewing machine) but if you have a sewing machine, you can try to use it if you can!

      [​IMG]


      So just keep on sewing, sewing sewing until you are done~! And you'll get this almost perfectly done dress!

      [​IMG]


      ALMOST THERE!

      Now you have to sew the waistband! You can actually sew the waistband together with the straps earlier, but I find it a bit more difficult to keep them all together so I did it separately. But it's your choice!

      Now for the waistband, I took the measurements from the human versioned tutorial where they mentioned to cut a 10 inches tall for the waistband. Figured this is for a 1/4 doll, I just do the maths 1.4 x 10 inches, then I use centimeter, and I got 6 cm for the waistband. (Perhaps for the SD, you can just calculate 1/3 and for Yo-SD, which is 1/6).

      For the length, we measured it would be 12 cm, but to be safe, I would usually add about 3-4 cm more to the length of the waistband to give some allowance. So I measured maybe 15 cm for the waistband length. And just draw and cut it out, and you would have this.

      [​IMG]

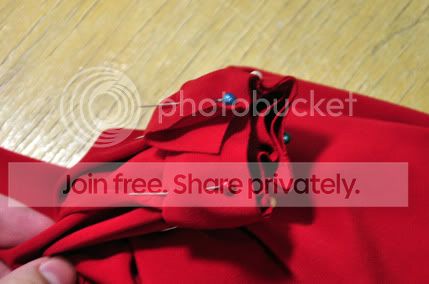

      Fold the waistband in half and start in the middle of the dress, just pin them down like so. And then just sew like you did to the straps. Then when you are done sewing over the circle of the waistband, do sew the two front of the waistband together.

      [​IMG]

      [​IMG]

      And you're done!

      You don't need to hem the skirt or the strap at all. That's the beauty of this dress. The fabric doesn't fray so there's no need to!

      • x 2

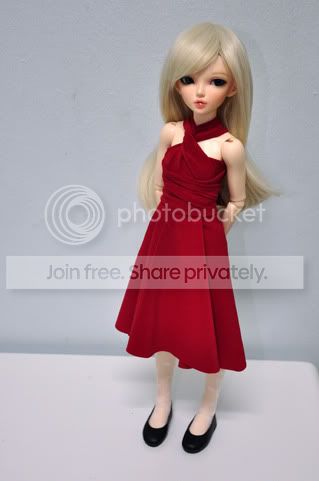

    3. The end result! And also to show the different ways you can tie and out this dress on your girl!

      [​IMG]

      [​IMG]

      [​IMG]


      And more examples! The dresses I made previously!

      [​IMG]

      [​IMG]


      Just have fun, play around and such. I hope this tutorial would help a lot! I would love to see the dresses you made using this tutorial!

      Edit: Just would like to share two more dresses I sewed, for a friend actually. I actually made the length of the skirt longer.

      [​IMG]

      [​IMG]

      • x 2
    4. Thank you so much for posting this! :D I just tried it out and I love how quick and easy it was! I simplified the pattern a bit more by ignoring the waistband part altogether, since that area is covered by the long pieces anyway once it's all wrapped up. I also left the skirt square (as opposed to cutting a circular hem) since I like the look of the jagged hem. Plus I'm lazy. :P At the last minute I added a scrap of fabric for a headband, and tucked another scrap under the headband for the "flower".

      Here's Lenore sporting her new outfit. I can't wait to make more of these!

      [​IMG]

    5. What kind of texture is the polyester knit? Is it kind of like swimsuit fabric or would I be able to use a cotton T-shirt? I'm not sure they'd have the same drape, but T-shirt jersey knit also doesn't fray so I was thinking I would try making one of these dresses for my doll with an old T-shirt.

    6. You can actually try the old shirt if you like! What I use was a really stretchy type, you can say something like the swimsuit fabric in a way? I'm not a very fabric expert, all I know was that is the name polyester knit. But I did use something like the swimsuit fabric for the multicoloured dress I made! The skirt part only though. So any very stretchy material should work.

    7. if anyone is interested, some more ways to tie dress,
      [​IMG]
      as soon as im done with a comission, Im going to try this :D

    8. I was so pleased at how easy this is to make that I made two!

      [​IMG]

      The green one is made with jersey knit so it had plenty of stretch. I made the second one out of a satin smooth (not so stretchy) fabric. I had to add seam allowances for the straps and left enough room to add a snap to the waistband. Thanks for the tutorial! My girls love their new outfits! ^_^

      • x 1
    9. here is my contribution to the spammage ... thanks again Silver for sharing this, you're awesome!
      [​IMG][​IMG]

      • x 1
    10. I followed the link Silver Identity shared and made one too! I'd have shared soon, but didn't realize this thread was here. Here is Cybele wearing her new dress (btw, I love the drape!):

      [​IMG]

    11. I've still been having some trouble figuring out how to wrap the dress in the different styles, but this took me no time at all to make. It was a lot of fun! And it gave me the perfect project for the random bit of material I picked up.

      [​IMG]

    12. Question to everyone who has made one. What sort of fabric did you use, or better yet what fabric do you recomend?

    13. Thanks for all who had posted pictures and comments! I even have some trouble to get the other tying styles for the dress! I only manage to get four styles from what I see, but this dress is very versatile!

      @Elcia I recommend any cloth that stretches and doesn't fray when you cut it! I used polyester knit, like I suggested. I even used jersey knit (Like from a t-shirt). Even the fabric like for swimsuits is great too.

    14. What Silver said. ;) Mine is also polyester knit. I did a similar outfit with really soft t-shirt material (the jersey knit). Haven't gotten any swimsuit material, but that sounds like it would work wonderfully as well. You could probably use other really drapey material, too, but a lot of them fray a lot, so you'd need to hem everything, and I don't know how that would effect the garment.

    15. I love that fabric, EilonwyG!!!

      I made a dress from this tutorial, too, and it was really easy! I used regular cotton fabric and had to hem everything from the straps down to the skirt, but I think it was worth it. Next time, I might try to find some fabric that won't fray when cut. We'll see. :P

      [​IMG]

    16. Made one from some stretchy fabric I bought a while ago and wasn't sure what to do with it......

      [​IMG]

      • x 3
    17. I can't believe I've made three of these now! It's been so much fun to make. Lechi, my kid delf elf cherr, demanded one. She's on a Bobobie body. I only changed a bit on the dimension, making the straps a bit wider to account for her huge boobs.

      [​IMG]

    18. I have made two of these using the human tutorial. The first one is with a non-stretch fabric that needs to be hemmed. The second is with stretchy material that fits better.
      [​IMG]
      100_6788 by Lucky XIII, on Flickr

      [​IMG]
      100_6804 by Lucky XIII, on Flickr

    19. Here's my contribution to the thread - and the first SD dress! Thanks so much for this tutorial; I had so much fun making this, and it was super-easy to make for an SD sized doll - it only took a little bit of calculating. :)

      Here it is!

      [​IMG]

      • x 4
    20. Thanks again for this tutorial Silver! :D I finally found some stretch fabric and got around to making some.
      Here's my Maia in her dress
      [​IMG]

      I'll take pics of my minifee in her dress when it's not so dark.

      • x 1
    21. Call me dense but I'm looking at the construction of this and wondering how you guys getting it to slip over the butts... The fabric may be stretchy but your stitches are not. If you are going to do this with a sewing machine, would you use a zig zag stitch...? Or did you guys use stretchy thread? I'm a tad confused... or was the pattern made with give in mind to fit over the butt.

      Don't mean to sound dense but I had that problem already once with the clothes i have made for my little girl. Wouldn't slide over her butt all -_-

    22. Actually... I got the dress on going down over her shoulders with her head off, but it refused to come off of her going either way. So I had to cut down the back of the skirt, take it off of her and sew a little panel on the back to sew a snap onto. Now it fits just fine! Of course, I made mine for a Minifee, who have rather large booties. :P

    23. This overall design is actually used to slide over the bottom area and slide back off. It's not too difficult really, but what I usually do is perhaps you stretch the fabric to some extent while sewing? It's something like sewing the elastic where you stretch out the elastic while sewing. You could do something like KitsuneClaws did. I had only done so for my Minifee and it works for her. I am planning to sew this dress for my DoT girl soon enough.


      But anyways, thanks for the people who contributed into this thread with their wonderful dresses! All of them looks absolutely gorgeous!

    24. Mirajai, I didn't make the entire dress yet, but I did make a skirt (same idea, just didn't attach the straps). I just stretched the material a bit when sewing - it worked perfectly :)

    25. Okay so far my experience did not go great but the dress came out looking rightish.

      My little girl might be to small for the way this pattern is designed. Well at the hips, I gave enough space to go over her rear with the full intent to use elastic. Alas non was to be found but it's holding on her with a ribbon through the waistband. And I made the straps to long, but they worked. Just makes her look like she's wearing an obi on her dress.

      Hoping to get my hands on some knit remnants to try this out properly for her. And next time will probably hand sew, use the machine and it puckered at the waist when I curved it.

      Thanks for contributing this pattern~!

    26. Here are my girls in the dresses made from this pattern! I used old t-shirts and some jersey knit fabric! I love how easy yet lovely this is!!!!! THANK YOU SOOOOO MUCH!!

      Dollfie Dream Dynamite Miu
      [​IMG]


      Going back to making more dresses now!!!

      • x 2
    27. How did you do the waist on the DDdy? I tried making this dress for my girl, but her waist was too small compared to her hips and it's a little loose on her. ^^

    28. :3 I actually cheated a lil to get the dress on her. I measured and all according to this tutorial then when it came time to put the dress on her. . . I was like =/ so I popped her torso off, put the dress on her waist and put the torso back on! ^_^

    29. For extra stretch to get the dress over hippy girls, try stretching the material as you sew it. This might give you a slightly ruffled seam, but the knit fabric will maintain its ability to stretch more than if you keep the pieces neat. Also, cut at least an inch longer on the waistband than is suggested, as that will give you more leeway for fitting. Alternatively, you could sew with a zigzag stitch, rather than a backstitch; zigzags stretch along with the fabric more than a backstitch does. I made this dress exactly the way the tutorial said, including using a backstitch, and it fit my Iplehouse JID Amy just fine, but I suppose her waist measurement is more proportional to her hips than some other dolls.

    30. OMG! I didn't know I could do that! That opens up a whole new world of sewing for her. Thank you! :D

    31. Made a few more of these. Seriously, this is such an easy dress to make and takes no time at all. I think I've made three in one day and am up to having made 9 of these dresses; mostly for minis, but one was made for my Teenie Gem and two were made for my friend's Feeple 65 girl. I haven't gotten a chance to take any pictures of her yet in the dresses, but damn! She looks hot in them!

      So just a few pictures from the ones I've made recently.

      [​IMG]

      [​IMG]

      [​IMG]

    32. I used the pattern to make this skirt then wrapped another piece of fabric around for the top! Thank you for posting this tutorial! I love it!! ^_^
      [​IMG]

    33. Wowee, love it so much that I tried one. It only took a couple of hours, only because I use fray check on the circle skirt. It took a long time to add fray check. After that, it was fast. I had to add the opening on the back since my girl has big butts and small waist (wish I have her numbers). Any how, here is the first Convertible/Infinity dress. I plan to make a few more. It's so elegant and easy to do. Thanks for sharing the tutorial and for including the link to the human size one.

      [​IMG]

    34. This is such a cool tutorial, thank you so much! I just made my very first garment and it was a bit tricky, but overall it went great. Especially because it was my first time actually sewing a piece of clothing by myself. I will update with pictures later ^^

      Here it is, with matching legwarmers:
      [​IMG]

    35. Just an FYI: I believe by not cutting the corners off, you have made a Hankerchief hemline.... which I love.
      I have the full intention to make one of these for my AoD Rao

    36. I finally made two for my Angell Studio girl though the pink one needs to be adjusted xD
      Aaah I'm just so obsessed with layered skirts xD

      [​IMG]
      The bottom layer is a larger, plain square black skirt piece

      [​IMG]
      both white and pink skirt layers are the same sized square pieces :)

      @LoveLily - your tiny's layered skirt really makes me squee xD I'd never have matched those colours together, but man they look so nice when you did!
      @Snow - I reaaally love the matching leg warmers you made! I'd want to try make a pair too for my next grey dress xD

    37. I finally took time today to make 2 versions of this dress, both modeled by Maisie, my Narae. Both fabrics are leftovers from sewing projects from garments made for me. Both also hand sewn. It's a super easy sewing project. In fact, I may have to make a human sized dress for myself. Thanks for sharing this project and the link to the blog, which has a Shirt Skirt project that would also be cute for the dolls: http://sewlikemymom.com/the-shirt-skirt/[​IMG]and [​IMG]

    38. [​IMG]

    39. So I attempted this and I'm unsure what to do with the Left over strap length anyone have this problem? Or does anyone have an suggestions on how I can hide them more? I chose a really stretchy Fabric but It looks really bulky on the waist. I have another fabric I'm going to try it with tomorrow thats more fine. :) I'll put up a picture then too of both dresses!

    40. maybe you can shorten the straps?

    41. madwren...I made one of the dress straps thinner. If you follow the scaling directions, the straps do come out a bit bulky, which is modified by your fabric choice. The grey fabric I used was quite stiff and thick, which adds bulkiness. But is also has the benefit of emphasizing the circle nature of the skirt, which I like as it has a 50s feel to it. The red/grey/white fabric is a delicate rayon knit with a very soft hand that curls inward, reducing bulkiness, but not enough which is why I narrowed the straps.

      Chii483...what's the issue?

      I tend to be visual and not read directions but look at pictures. The original blog posting has photos on a human scale, which I found to be a great reference.

    42. I made one for my (forthcoming) Littlefee. The skirt is two offset squares. I remember this fabric being a little thinner when I bought it...

      I just kind of threw this together... I'm not currently really set up for sewing. I think I kind of like the rouch/uneven look, though...

      [​IMG]
      Untitled by Dreamcraft Studio, on Flickr

      [​IMG]
      Untitled by Dreamcraft Studio, on Flickr

      [​IMG]
      Untitled by Dreamcraft Studio, on Flickr

    43. This is my version for EID.[​IMG]

    44. Ive made several things with this pattern! its so versatile!

      i made a top for my Daisy Dayes Elise

      [​IMG]
      radnomdolly052 by kittywolf13, on Flickr

      an SD dress

      [​IMG]
      Untitled by kittywolf13, on Flickr

      (which useing the scraps from this is how i made the top above)

      and this was my first attempt at it!

      [​IMG]
      Sabriel_001 by kittywolf13, on Flickr

      I should also note that they are all handsewn... cause my machine seems to eat stretchy fabric.

    45. This dress is fabulous. Amet made one for Grace, my Infinitidoll Daffodil and the effect is very nice. We definitely want to try our hand at making one for the rest of our girls.

      [​IMG]

      [​IMG]

    46. I'm attempting to make one of these dresses. I had been planning on leaving the waistband off, because as a few people mentioned, it's not really necessary...but then I realized I'd have more options for wrapping if the waistline was finished, so I decided I'd go ahead and put one on......but now I'm lost. Where exactly does the waistband go? You put the straps on first, so does the waistband go inside the straps?? I mean, if you put wrong sides together and sewn on the straps, then sew on the waistband and turn it all right side out, the waistband would be on the inside....is that right? I can't tell from any of the pictures, because the waistband never shows -_-

      Edit: Ok, Now that I actually read the original tutorial, I guess I get it. It's exactly what I thought it was, it just didn't make sense to me that you're sewing on a waistband that generally won't show heh

    47. This is cool, thanks for posting! I'll have to give it a try.

    48. Thanks for this awesome tutorial! I would so love to try this out, except my doll is a boy and might not be too impressed with my results. :o

    49. I really love this dress tutorial! I can't wait to try it!:D

    50. Tried this last night with my OT doll. It's really easy! (that coming from a sewing newbie)

      I don't have stretchy fabric, nor a compass, so I make do with what I have to practice (too impatient to find them lol). Since the fabric is not stretchy, I have problem to pull the dress over the doll big butt, so I cut the skirt a bit at the back. Then she could wear the dress (later I'lI add a snap or velcro, but for now the strap is holding the dress nicely). And like tenukihandcrafts said, perhaps I should've cut a thinner strap since it is too bulky at the waist with the fabric that I used..

      After this I hope to find a stretchy fabric (is lycra ok?) and do this dress more properly!

      Thanks a lot for the tutorial! :)

    51. From a fellow Malaysian to another, if you have access to MidValley, I recommend going to Kamdar, and just ask for knit fabric or just any stretchy material. I got some knit fabric for really cheap per meter. :>

    52. I've made these before for myself. I NEVER thought to make one for the dollies, but it's perfect! Thank you for your inspiration and the measurements!

    53. Thank you for the tutorial, Silver Identity! I really like the simple, elegant look. I'll be trying it out soon, too! :)

    54. this is soooo cool i will have to try it.

    55. Everyone did such a great job on this dress so I am really going to have to try it out for myself. I just am really really really bad at math!!!! Hopefully I can get my daughter to help me figure out all the measurements. She, on the other hand, is excellent at math! Thanks for sharing this and have a great weekend!

    56. I just made this dress (for an off topic doll, so no pictures, sorry!) and thought I would share my little discovery:

      This pattern becomes even easier if you use ribbon for the straps. Super elegant looking too!

    57. Oh my gosh! All the dresses are so pretty >.<

    58. I really look forward to making this!

    59. This is great! I can't wait to try this. It's so versatile - elegant gown, cute summer dress... I really can't wait to get into it!

    60. I can't tell you how much I enjoyed this tutorial! Here's marg in her new dress, perfect for her visit to malvinas'!

      [​IMG]
      [​IMG]
