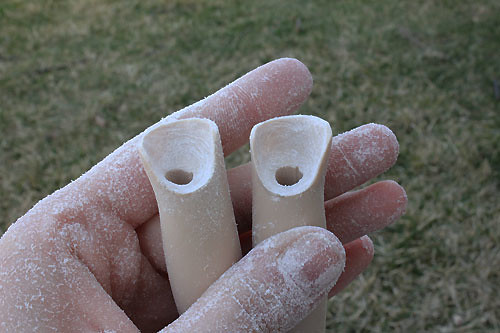

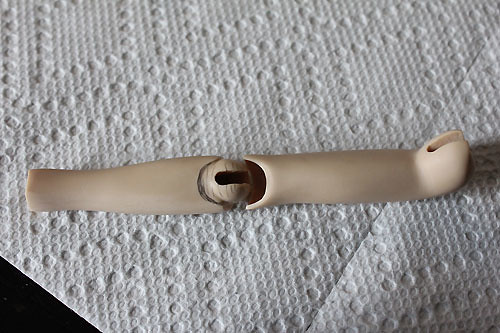

    2. Eventually, the little cap of resin will pop off!
      [​IMG]

      Repeat this process for all the limbs. Make yourself a guide channel each time to avoid slips!
      [​IMG]

      [​IMG]

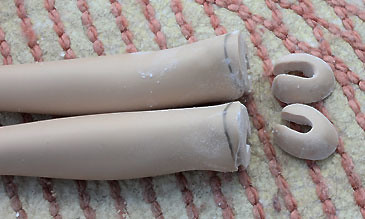

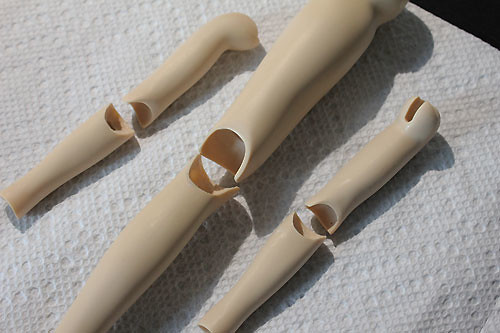

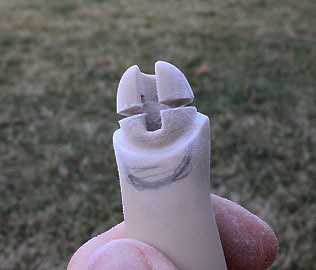

      And eventually... you have this!
      [​IMG]
      Isn't that lovely? All of those would have been dust if we had just started sanding away!

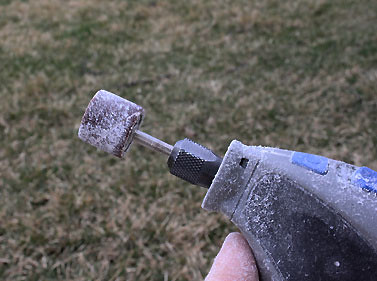

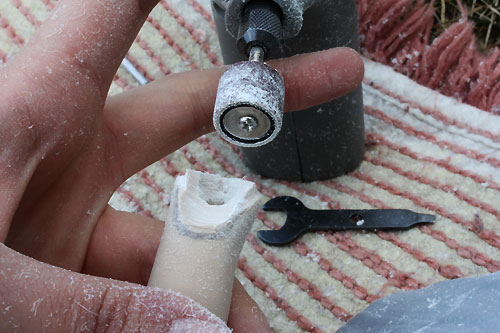

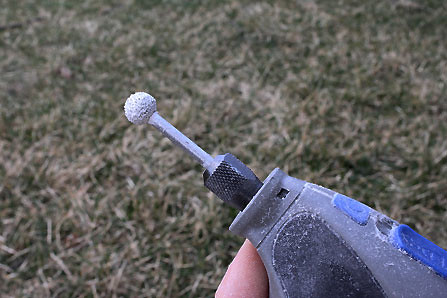

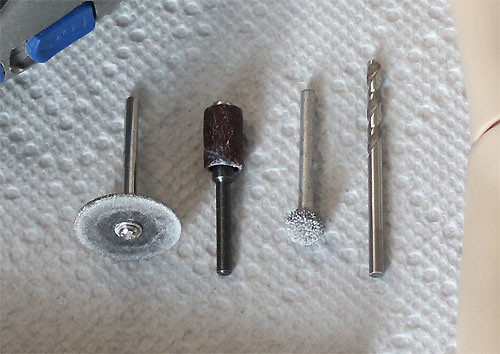

      Next, we're going to be using the sanding barrel Dremel bit.
      [​IMG]

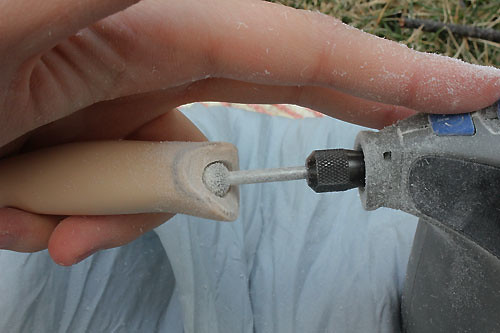

      Slowly use the sanding barrel to remove excess resin. Don't go all the way down to your lines quite yet, but angle the tool to remove as much resin as you can while we're still in bulk removal mode! Be careful, go slow, don't go too far. It will be easy to precisely remove more in the next step.
      [​IMG]

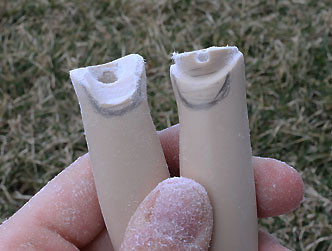

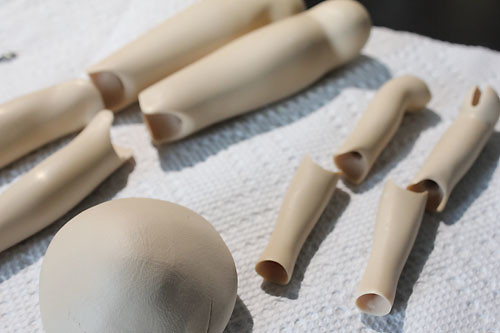

      The piece on the left has been barrel sanded, the piece on the right has only been disc sanded.
      [​IMG]

      Do the same for all the pieces you're working on.
      [​IMG]

      Once that is complete, the excitement should be simmering below the surface as you begin to see the future socket taking shape... Now we're going to switch to our final socket tool: the round 5/16" carbide cutter.
      [​IMG]

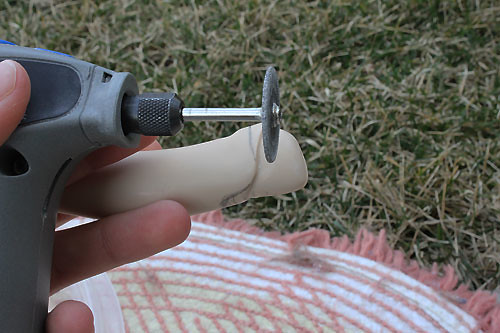

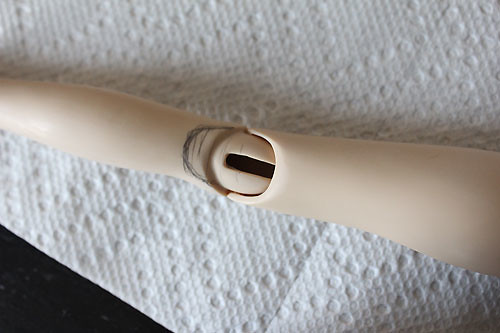

      We're going to do some more planning sanding! Guide the round cutter directly into the elastic channel, pushing down into your planned joint, rocking it towards you to begin to hollow out the socket.
      [​IMG]

      Now is the time to gradually work towards your guideline. Go slowly and carefully, it's better to take off too little than to fix it if you take too much!! You can see in the image below that I began to shape the part of the socket closer to the 'knee' - be sure to leave enough resin there to make a stable wall, and guide yourself down before trying to shape the socket! Planned guide cuts are very helpful to prevent mistakes.
      [​IMG]

      Continue sanding and shaping, working all around to help guide the new socket into a somewhat round shape. Use your fingertips to feel for bumps and lumps inside the new socket that will impede posing.
      [​IMG]

      #2 rykaan, Mar 15, 2012
      Tools
      + Quote Reply

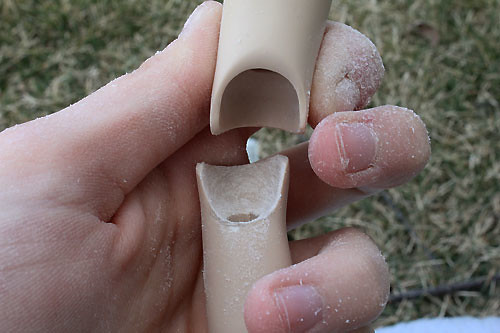

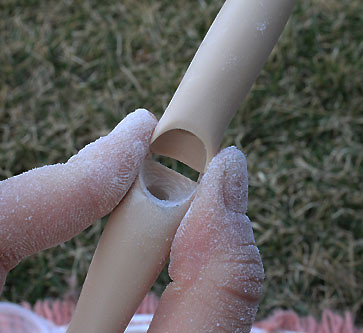

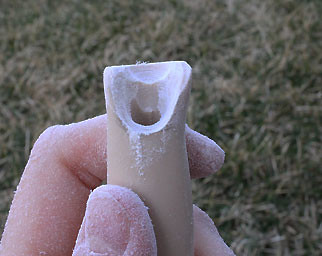

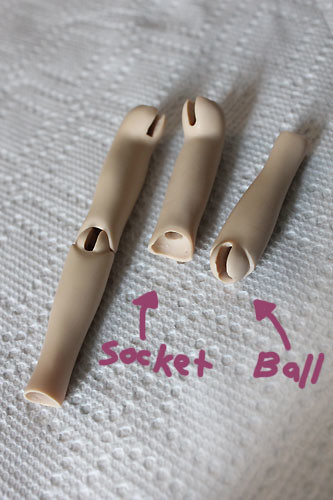

    3. Use those pre-existing sockets to check the accuracy of your work! Poke around inside the pre-existing sockets to get a feel for the shape and mechanics you're trying to emulate with this new socket.
      [​IMG]

      Do this to the other limbs...
      [​IMG]

      Continue using the pre-existing sockets to guide your work!
      [​IMG]

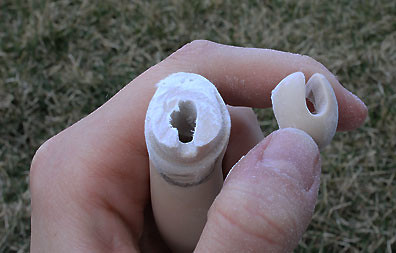

      Once all of your sockets are hollowed out, take a minute to shake yourself off! Don't remove your mask until you've finished brushing yourself, your tools, and your pieces off. It'd probably be a good idea to take a shower and change your clothing at this point as well! Resin dust isn't friendly stuff to hang around with, even in microscopic amounts.

      So now we have a bunch of sockets...
      [​IMG]

      Break out that epoxy! Mix up more than you think you need, it is much easier to tint your entire amount at once. Use acrylic paint or powdered pastel pigments to tint your epoxy to match the resin as close as possible.

      UPDATE: For this first modification, I didn't properly mix the epoxy, which resulted in incomplete curing. I think this is the only reason I was able to cut it with a blade, because on consecutive attempts, this proved impossible. Now I use polymer clay for sculpting new joints, it is much softer even when cured, and you can cut it. If you're worried about the oils in the raw clay touching the resin, you can line the socket with a piece of cling film first. Sorry about the confusion!

      [​IMG]

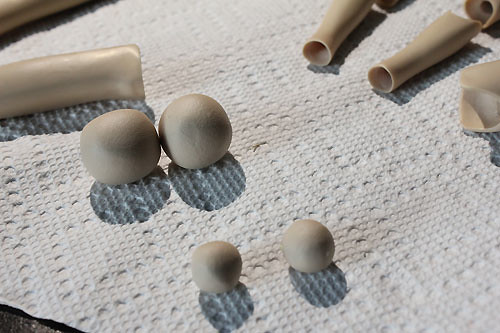

      Now for a little guesswork: estimate how much you'll need for one knee joint and one elbow joint. Form the quantity into a log and use your sockets to measure your amount, adding or removing epoxy as needed. Your amount should be enough to fill each socket with a few millimeters between them.

      [​IMG]

      Once you have an amount that works for an elbow and a knee, make each of those a matching ball, leaving you with two perfectly portioned, equal pairs.
      [​IMG]

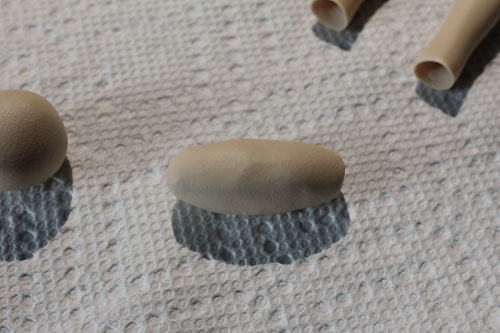

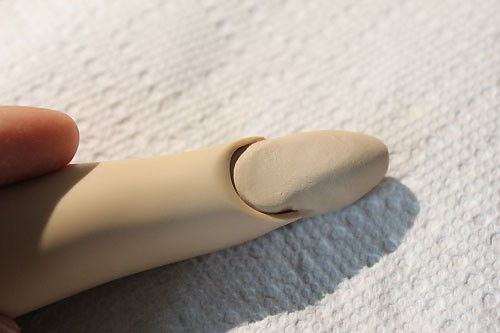

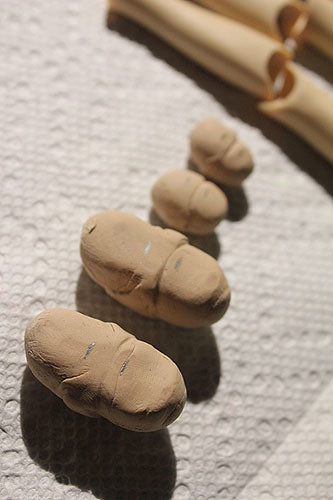

      Now, form one ball back into that log shape from earlier, and fit it into one socket. Smooth down any overflow, staying as neat as possible at this stage. It's difficult to stay neat, as you'll see by my final result.
      [​IMG]

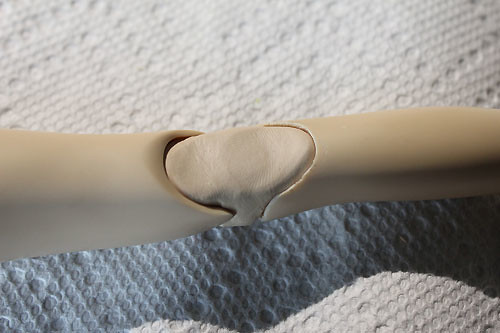

      Fit the corrosponding socket onto the epoxy, being sure to match up right thigh with right calf, left upper arm with left forearm, and so on!
      [​IMG]

      [​IMG]

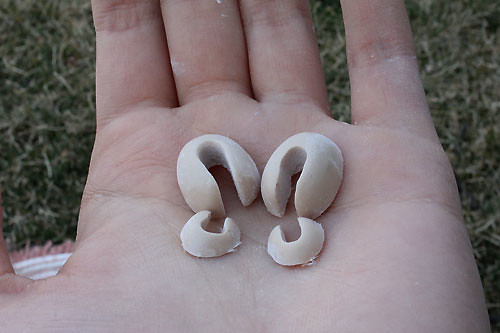

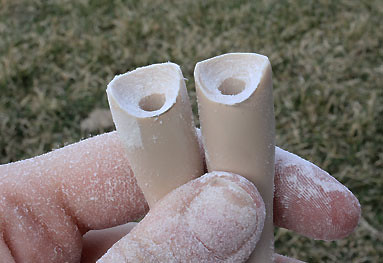

      Once you've got a log that fits snugly in each piece, GENTLY wiggle your sockets to free them, and then re-fit the pieces together in a bent position.
      [​IMG]

      You're going to want to very gently remove and guide your pieces onto the joint in a few different positions, taking care not to maim the overall shape of the piece while molding it into a form that will function smoothly with the sockets.

      [​IMG]

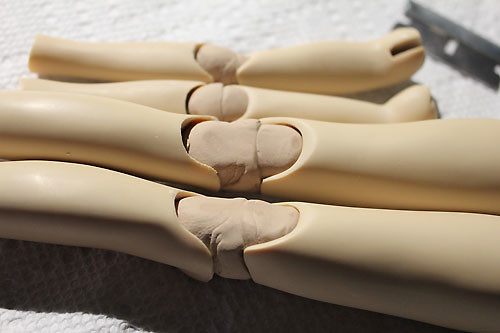

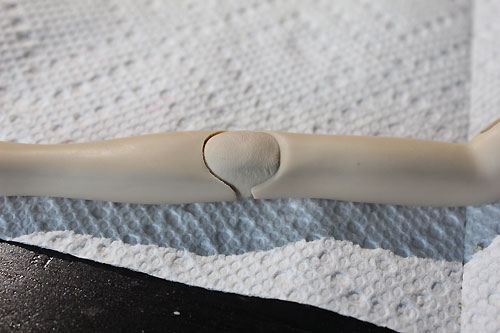

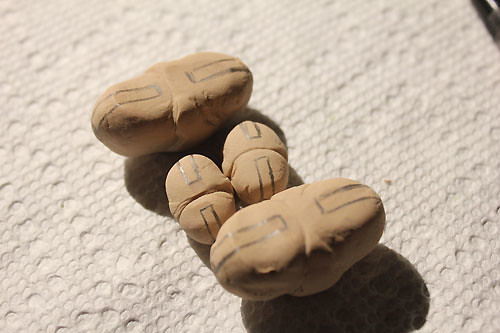

      Separate your new peanut joints from the resin pieces and let them harden completely.

      #3 rykaan, Mar 15, 2012
      Tools
      + Quote Reply
      • x 1
    4. So now we have all these solid peanuts that need elastic channels. I start by making guide lines, using corresponding pieces to assure that they're all as identical as humanly possible. If you're the measuring type, I recommend it. I'm the eyeballing type.
      [​IMG]

      Leave enough space between the lines to ensure stability, while making your joint channels big enough to ensure a pleasing range of motion!

      [​IMG]

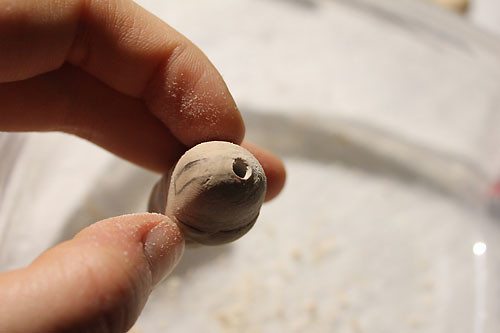

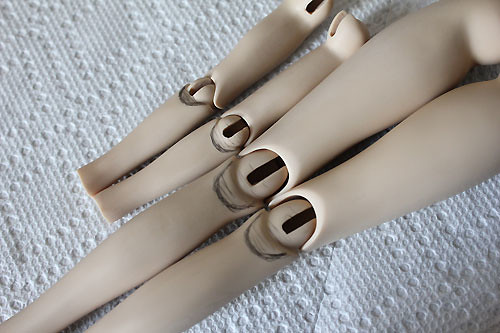

      Draw lines to map your elastic channels, curving them around the ends of the peanuts to about the halfway point. Try to keep everything lined up!

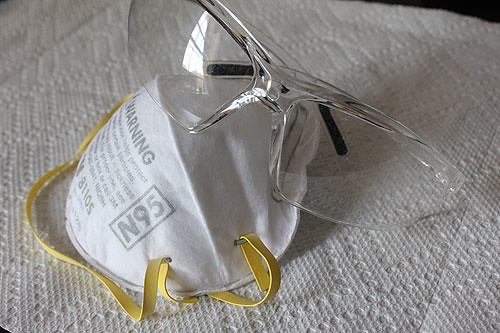

      Get that mask back on ladies and gentlemen, and get your trusty Dremel.

      We're going to be using the 1/8" drill bit now. Drill down, as straight as possible, heading directly for the end of your drawn elastic channel on the other side of the peanut.

      [​IMG]

      I found that it was easiest to stop about halfway through and go in from the other side. This ensures that your hole remains lined up, and eventually...

      [​IMG]

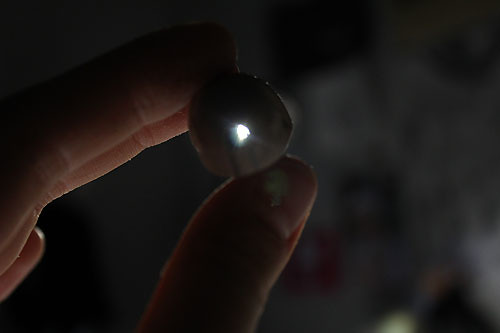

      You'll see the light!

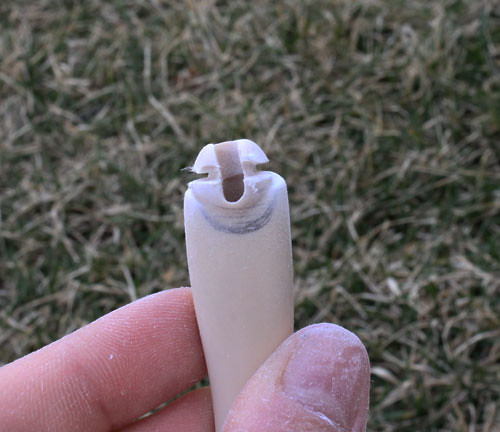

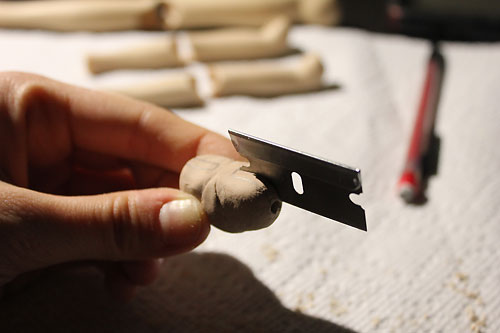

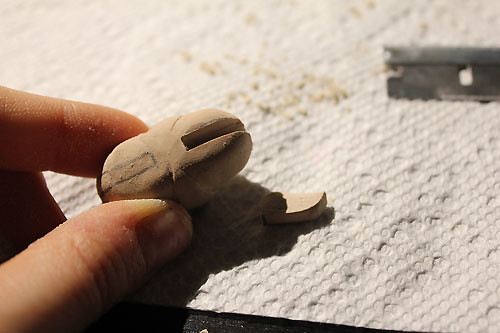

      Following the lines you drew earlier, use the razor blade to cut directly down towards your newly drilled elastic channel.
      [​IMG]

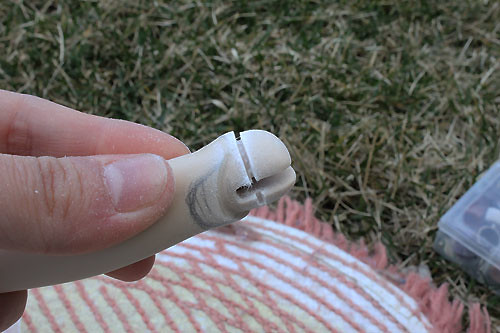

      Slice down both sides until you hi the elastic channel, and you should be able to hook a fingertip on the sliced piece to pry it up and out.
      [​IMG]

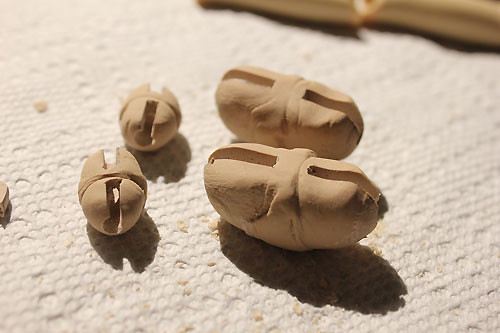

      Repeat this process for each side, each peanut, and each elastic channel!
      [​IMG]

      By this point, if you're anything like me, you won't be able to sit still due to the immense excitement. That's right folks... it's time to string this baby together to see this hard work pay off! At this point it's up to you what level of finishing work to do. I'm satisfied here, and was too impatient to resist re-stringing!

      [​IMG]

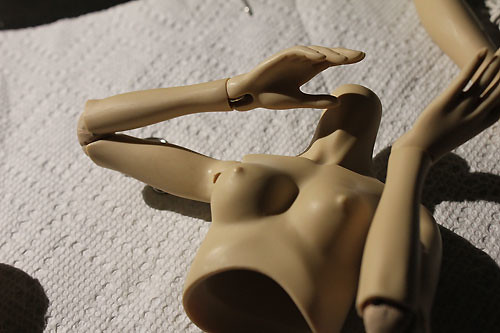

      I strung the arms first for instant gratification. Lookin' good!

      [​IMG]

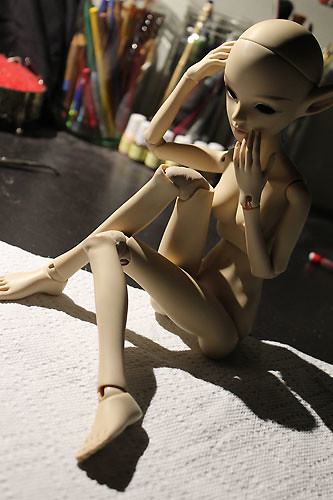

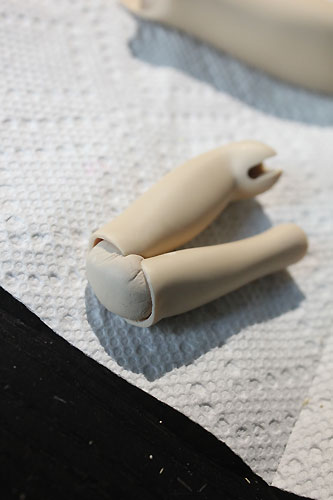

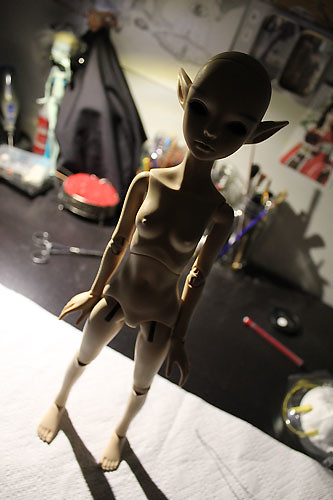

      All back together! This is to verify that the doll can still do the standard poses, like standing...

      [​IMG]

      [​IMG]

      [​IMG]

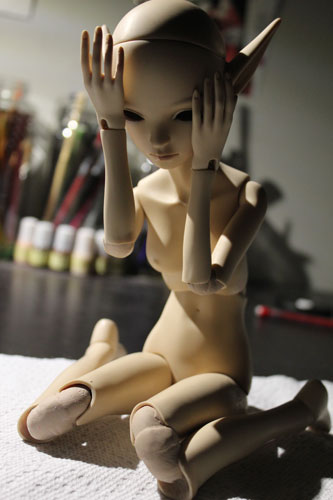

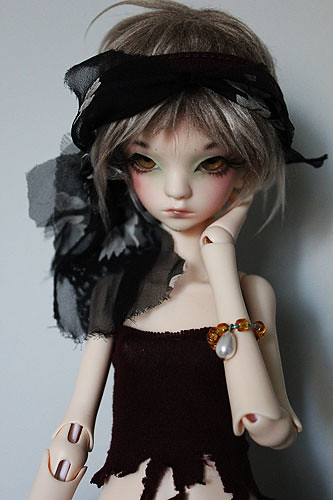

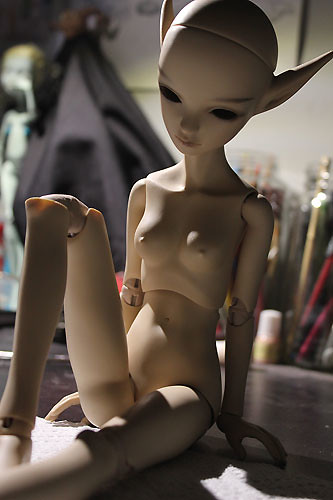

      in addition to many that it couldn't do before!!

      So there you have it. :] With the right tools, patience, and effort, ANY doll can pose like a dream. If you have any questions, comments, or suggestions, feel free to comment or PM me!
